OVO Open API

OVO Open API Integration Guidance

Introduction

OVO Open API Activation

INFO

If you are personal seller, you can't use the OVO Open API due to the limitation from the OVO. Worry not! If you wish to receive payments from OVO, you can activate OVO Push Payment which enable you to receive payments from OVO.

Requirements

1. Client ID / Secret Key from OVO

2. DOKU account. To access DOKU API, you need DOKU client id & DOKU client key that you can find in DOKU back office.

Integration Flow

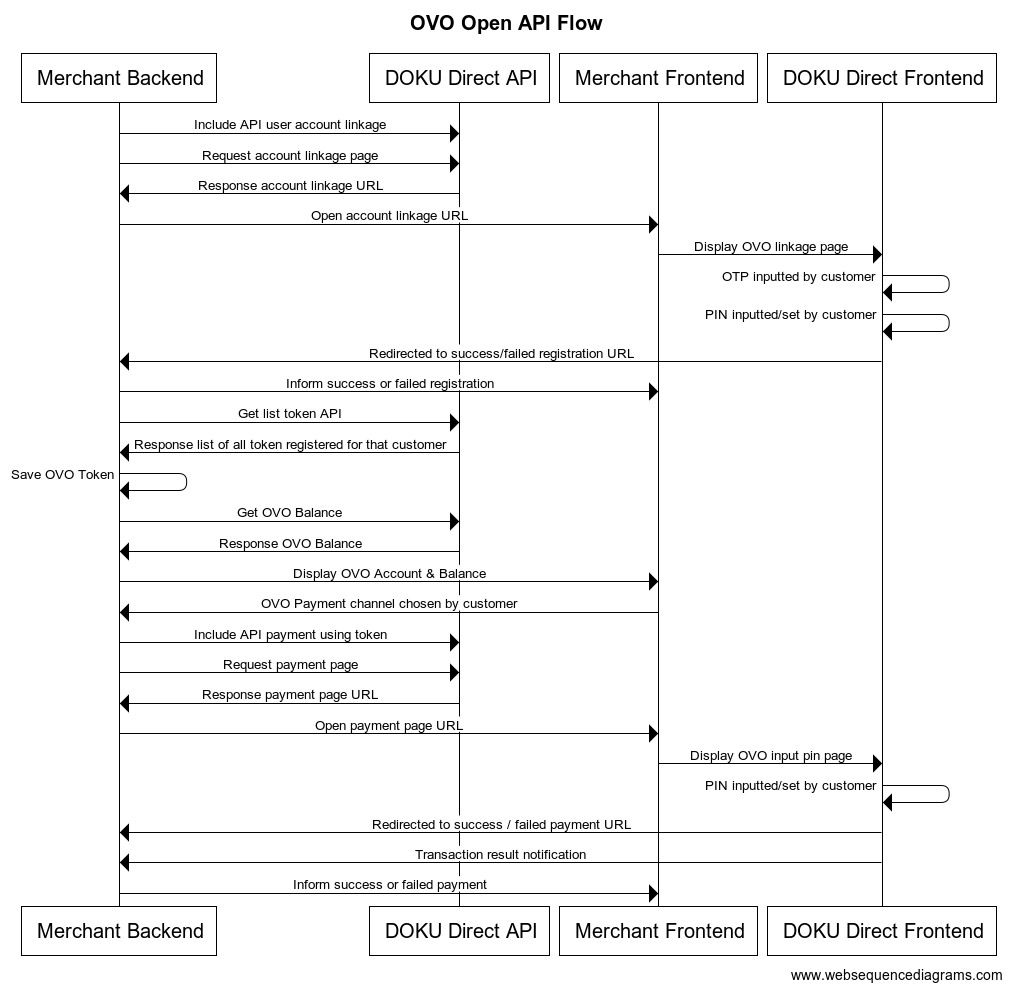

Here is the overview flow for OVO Open API :

OVO Open API Flow

API list

Here is the sample of request header to implement every API list below :

Client-Id: MCH-0001-10791114622547
Request-Id: 15022aab-444f-4b04-afa8-ddfce89432ec
Request-Timestamp: 2020-08-11T08:45:42Z
Signature: HMACSHA256=vl9DBTX5KhEiXmnpOD0TSm8PYQknuHPdyHSTSc3W6Ps=

Request Header Explanation

Parameter	Description
Client-Id	Client ID retrieved from DOKU Back Office
Request-Id	Unique random string (max 128 characters) generated from merchant side to protect duplicate request
Request-Timestamp	Timestamp request on UTC time in ISO8601 UTC+0 format. It means to proceed transaction on UTC+7 (WIB), merchant need to subtract time with 7. Ex: to proceed transaction on September 22th 2020 at 08:51:00 WIB, the timestamp should be 2020-09-22T01:51:00Z
Signature	Security parameter that needs to be generated on merchant Backend and placed to the header request to ensure that the request is coming from valid merchant. Please refer to this section to generate the signature

Merchant and DOKU must validate signature in API list, see how to generate signature. You can refer to the documentation here.

User Account Linkage

Merchant can binding OVO account to customer id, each OVO account can only binding to one customer on one merchant. Customer need to verify OTP and input PIN on OVO page.

API Request

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	https://api-sandbox.doku.com/ovo-open-api/v1/token
API endpoint (Production)	https://api.doku.com/ovo-open-api/v1/token

Here is the sample of request body to binding OVO account to customer id :

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "Jessica",
        "phone": "087872180555",
        "email": "[e-mail]",
        "additional_info": "None"
    },
    "ovo_account": {
        "account_mobile_phone": "6287872180555",
        "success_registration_url": "https://www.wtdteam.com/success",
        "failed_registration_url": "https://www.wtdteam.com/failed"
    }
}

Request Body Explanation :

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Merchant customer id
customer.name	string (70)	Optional	Customer name
customer.email	string (255)	Optional	Customer email
customer.phone	string (20)	Optional	Customer phone number
customer.additional_info	string (20)	Optional	Customer additional info
ovo_account.account_mobile_phone	string (20)	Mandatory	Register phone number on OVO
ovo_account.success_registration_url	string (2048)	Mandatory	URL for direct page after success register
ovo_account.failed_registration_url	string (2048)	Mandatory	URL for direct page after failed register

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Status	201
Result	SUCCESS

Here is the sample of response body:

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "Jessica",
        "phone": "087872180555",
        "email": "[e-mail]",
        "additional_info": "None"
    },
    "ovo_account": {
        "registration_url": "https://jokul.doku.com/ovo-open-api/registration/sessionId/27817263817263817",
        "status": "PENDING"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Merchant customer id
customer.name	string (70)	Optional	Customer name
customer.email	string (255)	Optional	Customer email
customer.phone	string (20)	Optional	Customer phone number
customer.additional_info	string (20)	Optional	Customer additional info
ovo_account.account_mobile_phone	string (20)	Mandatory	Register phone number on OVO
ovo_account.registration_url	string (2048)	Mandatory	URL from DOKU for Customer to binding their account
ovo_account.status	string	Mandatory	Always PENDING for Successfull token request (waiting for OTP verification & PIN vervification)

Get List Token (OVO)​

After successful account linkage, merchant can get OVO token that can be used for that customer to payment using OVO. Token is created by DOKU, and valid for 1 year.

API Request​

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	https://api-sandbox.doku.com/tokenization/v1/tokens
API endpoint (Production)	https://api.doku.com/tokenization/v1/tokens

Here is the sample of request body to get Token for OVO :

customer.id{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU"
    },
    "token_data": {
        "type": "WALLET"
    }
}

Request Body Explanation :

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Customer id that already have active token
token_data.type	string	Optional	DIRECT_DEBIT / CREDIT_CARD / WALLET, if not specified get all payment channel token

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Method	POST
Result	SUCCESS

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "TESTINGQA"
    },
    "token_data": {
        "type": "WALLET"
    },
    "wallet": {
        "issuer": "OVO",
        "token_id": "fc72c4b0aedff916ab92e39cb80d3675",
        "masked_phone_number": "****1454"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Merchant customer id
customer.name	string (70)	Optional	Customer name
token_data.type	string	Mandatory	Will filled "WALLET"
wallet.issuer	string (255)	Mandatory	Issuer for wallet binding
wallet.token_id	string (128)	Mandatory	Token generated by DOKU
wallet.masked_phone_number	string (8)	Mandatory	Phone number masked

Get Account Balance

This balance check API allows users to check their latest OVO balance. The user should be able to access their balance at any time so they can make accurate and up to date decision regarding their transactions.

API Request​

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	https://api-sandbox.doku.com/ovo-open-api/v1/balance
API endpoint (Production)	https://api.doku.com/ovo-open-api/v1/balance

Here is the sample of request body to get balance for OVO :

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU"
    },
    "ovo_account": {
        "token_id": "fc72c4b0aedff916ab92e39cb80d3111"
    }
}

Request Body Explanation :

Parameter	Type	Mandatory	Description
customer.id	string (64)	Mandatory	Customer id that already have active token
ovo_account.token_id	string (128)	Mandatory	Token generated by DOKU

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Status	201
Result	SUCCESS

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "Jessica",
        "phone": "087872180555",
        "email": "[e-mail]",
        "additional_info": "None"
    },
    "ovo_account": {
        "ovo_cash_balance": "100000",
        "ovo_point_balance": "100000"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Merchant customer id
customer.name	string (70)	Optional	Customer name
customer.email	string (255)	Optional	Customer email
customer.phone	string (20)	Optional	Customer phone number
customer.additional_info	string (20)	Optional	Customer additional info
ovo_account.ovo_cash_balance	number (10)	Mandatory	OVO Cash Balance
ovo_account.ovo_point_balance	number (10)	Mandatory	OVO Point Balance

Payment Using Token

Payment using OVO token from OVO cash balance or/and OVO point balance. When OVO have program for payment using OVO point, customer can paying using OVO point balance on merchant. Payment using mixed OVO point and OVO cash, OVO point will be deducted first and the remaining will be deducted from OVO cash. Customer need to verify payment by input PIN on OVO page.

API Request​

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	https://api-sandbox.doku.com/ovo-open-api/v1/payment
API endpoint (Production)	https://api.doku.com/ovo-open-api/v1/payment

Here is the sample of request body to payment using OVO Token

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "Jessica",
        "phone": "087872180555",
        "email": "[e-mail]",
        "additional_info": "None"
    },
    "additional_info": {
    },
    "order": {
        "invoice_number": "MINV20201231468",
        "line_items": [
            {
                "name": "bola",
                "price": 10000,
                "quantity": 1
            },
            {
                "name": "ubi",
                "price": 5000,
                "quantity": 1
            }
        ],
        "amount": 15000
    },
    "ovo_account": {
        "token_id":"bcdbcdbcdbcbdbcdb-bcdbcd-bcdbcdb",
        "payment_use_ovo_point": false,
        "success_payment_url": "https://www.wtdteam/success",
        "failed_payment_url": "https://www.wtdteam/failed"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Merchant customer id
customer.name	string (70)	Optional	Customer name
customer.email	string (255)	Optional	Customer email
customer.phone	string (20)	Optional	Customer phone number
customer.additional_info	string (20)	Optional	Customer additional info
additional_info	Json	Optional	additional info
order.invoice_number	string (32)	Mandatory	Merchant transaction id unique per client id, only accept alphanumeric, _ and - Min length is 3, max length is 32
order.line_items.name	string	Optional	Privacy concern so optional, but if send will help our risk engine
order.line_items.price	number	Optional	Privacy concern so optional, but if send will help our risk engine
order.line_items.quantity	number	Mandatory	Privacy concern so optional, but if send will help our risk engine
order.amount	number (10)	Mandatory	Converted total amount.
ovo_account.token_id	string (128)	Mandatory	OVO E-Wallet Token
ovo_account.payment_use_ovo_point	string (5)	Optional	Default false, if True will use all OVO Point first before use OVO Cash
ovo_account.success_payment_url	string (2048)	Mandatory	URL for direct page after success payment
ovo_account.failed_payment_url	string (2048)	Mandatory	URL for direct page after failed payment

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Method	POST
Result	SUCCESS

{
    "customer": {
        "id": "CUSTOMER_OVOxDOKU",
        "name": "TESTINGQA",
        "phone": "087872180555",
        "email": "[e-mail]",
        "additional_info": "None"
    },
    "additional_info": {
    },
    "order": {
        "invoice_number": "MINV20201231468",
        "line_items": [
            {
                "name": "bola",
                "price": 10000,
                "quantity": 1
            },
            {
                "name": "ubi",
                "price": 5000,
                "quantity": 1
            }
        ],
        "amount": 15000
    },
    "payment": {
        "ovo_payment_url": "https://jokul.doku.com/ovo-open-api/payment/sessionId/27817263817263817263817",
        "status": "PENDING"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Merchant customer id
customer.name	string (70)	Optional	Customer name
customer.email	string (255)	Optional	Customer email
customer.phone	string (20)	Optional	Customer phone number
customer.additional_info	string (20)	Optional	Customer additional info
additional_info	Json	Optional	additional info
order.invoice_number	string (32)	Mandatory	Merchant transaction id unique per client id, only accept alphanumeric, _ and - Min length is 3, max length is 32
order.line_items.name	string	Optional	Privacy concern so optional, but if send will help our risk engine
order.line_items.price	number	Optional	Privacy concern so optional, but if send will help our risk engine
order.line_items.quantity	number	Mandatory	Privacy concern so optional, but if send will help our risk engine
order.amount	number (10)	Mandatory	Converted total amount.
payment.ovo_payment_url	string (255)	Mandatory	url from DOKU for customer to input pin for transaction
ovo_account.payment_use_ovo_point	string (5)	Optional	Default false, if True will use all OVO Point first before use OVO Cash
payment.status	string	Mandatory	URL for direct page after success payment
ovo_account.failed_payment_url	string (2048)	Mandatory	PENDING for successful token request (waiting for OTP verification) / SUCCESS if not need OTP, TOKEN_EXPIRED (need to input PIN twice and still can proceed to transaction)

Refund

Refund OVO transaction. For payment using mixed OVO cash and OVO point, OVO point will be refunded first.

API Request​

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	https://api-sandbox.doku.com/ovo-open-api/v1/payment
API endpoint (Production)	https://api.doku.com/ovo-open-api/v1/payment

Here is the sample of request body to do refund for OVO Transaction :

{
    "order": {
        "invoice_number": "MINV20201231468"
    },
    "payment": {
        "original_request_id": "82014"
    },
    "refund": {
        "amount": 1000,
        "reason": "Cancel Order"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
order.invoice_number	string (32)	Mandatory	Invoice number of the transaction that being refunded, same as the request payment
payment.original_request_id	string (128)	Mandatory	Request ID from Payment Initiation of the transaction that being refunded
refund.amount	number	Mandatory	Transaction amount that wants to be refunded
refund.reason	string (255)	Optional	Reason refund

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Method	POST
Result	SUCCESS

{
    "order": {
        "invoice_number": "MINV20201231468"
    },
    "payment": {
        "original_request_id": "82014"
    },
    "refund": {
        "amount": 1000,
        "reason": "Cancel Order",
        "status": "SUCCESS",
        "message": "SUCCESS"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
order.invoice_number	string (32)	Mandatory	Same as the request
payment.original_request_id	string (128)	Mandatory	Same as the request
refund.amount	number	Mandatory	Amount to be refunded
refund.reason	string (255)	Optional	Reason refund
refund.status	string	Mandatory	SUCCESS / FAILED
refund.message	string (10)	Optional	Reason if failed refund

Unbind Linked Account

Customer should always have option to unlink their OVO account from any merchant.

API Request​

Type	Value
HTTP Method	POST
API endpoint (Sandbox)	https://api-sandbox.doku.com/ovo-open-api/v1/payment
API endpoint (Production)	https://api.doku.com/ovo-open-api/v1/payment

Here is the sample of request body to unlink their OVO Account :

{
    "customer": {
        "id": "TEST-CIMBXDOKU-05",
        "name": "DOKUXCIMB"
    },
    "ovo_account": {
        "token_id": "1614dc147e404f41f6d2de877fda1f94"
    }
}

Request Body Explanation

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Merchant id
customer.name	string (50)	Mandatory	Merchant name
ovo_account.token_id	string (128)	Mandatory	Token created from register ovo account that owned by this customer id

API Response

After hitting the above API request, DOKU will give the response.

Type	Value
HTTP Method	POST
Result	SUCCESS

{
    "customer": {
        "id": "TEST-CIMBXDOKU-05",
        "name": "DOKUXCIMB"
    },
    "ovo_account": {
        "token_id": "1614dc147e404f41f6d2de877fda1f94",
        "status": "SUCCESS",
        "message": "Success Unbiding OVO Account"
    }
}

Response Body Explanation

Parameter	Type	Mandatory	Description
customer.id	string (50)	Mandatory	Merchant id
customer.name	string (50)	Mandatory	Merchant name
ovo_account.token_id	string (128)	Mandatory	Token created from register ovo account that owned by this customer id
ovo_account.status	string	Mandatory	DELETED Token
ovo_account.message	string	Optional	SUCCESS unbind token_id from customer

Technical Reference​

Payment Notification​

Guide how to handle payment notification can refer to Handling HTTP Notification.

Handling Idempotent Request​

Idempotency is a concept where a request can be sent multiple times with the same result as the first request, that means the system only performs one process for identical requests.

The examples below illustrate how idempotency is works.

Two Request, Connectivity Lost

Situation:

T0: Partner sends a payment request to DOKU T1: DOKU server receives this request and processes it successfully. With response http status 200 T2: Partner's server loses power prior to receiving the response in T1. T3: Partner's server power is restored and the same payment request is sent with all the same parameters (same request-ID and request details but updated requestTimestamp) to the DOKU server.

Outcome:

In this case the DOKU server reply with the same reply given at T1 since all the parameters, except for responseTimestamp, are the same. The user is only debited once, at T0. T3 has no monetary impact to the user.

PLEASE NOTE

DOKU reply http status 409 (CONFLICT) with same response if any potential loss for DOKU or Partner. For example, when process transaction if merchant can't handle properly idempotency response, and probably they will define as another success order.

List of Error Code​

Error message	Error Code	HTTP Status Code	Explanation
FAILED	0021	200	Failed After check status to ovo, executed by system scheduler
Invalid Header Signature	invalid_signature	400	Invalid Signature
Idempotent Request	idempotent_request	400	Double request with same request id under 20 second
ovo account not available please register to ovo	account_error	400	OVO account not found
customer id must not be empty	invalid_parameter	400	Not input object customer id (applied to every mandatory parameter)
attribute customer id must not bigger than 50 character(s)	invalid_parameter	400	Object customer id > 50 character (applied to every parameter that more than data type max length)
email format must be valid	invalid_parameter	400	Invalid format in customer email
account mobile phone format must be 62xxxx	invalid_parameter	400	Invalid format in Account mobile phone number
invalid url for attribute success registration url	invalid_parameter	400	Invalid format in success registration url
invalid url for attribute failed registration url	invalid_parameter	400	Invalid format in failed registration url
attribute refund reason must not bigger than 255 character(s)	invalid_parameter	404	Object refund reasong > 255 character (applied to every parameter that more than data type max length)
invalid token_id	invalid_parameter	401	Invalid token id
Customer change phone number on OVO Platform	account_error	400	Customer change phone number on OVO Platform, please proceed to unbind linked account
charge payment failed	account_error	400	Charge payment failed
High risk transaction	re_error	400	High risk transaction
attribute account_mobile_phone must be 10-20 digits	invalid_parameter	400	account_mobile_phone not in valid range 10 - 20 digits
something wrong in OVO	account_error	400	Something wrong in OVO system please contact DOKU team
exceeds attempt limit, not allowed request otp for 30min	account_error	400	Exceeds OTP request limit for this account_mobile_phone
transaction not found	account_error	400	Refund can't be processed, transaction not yet done / not found
ovo account already registered	invalid_access	401	OVO is already registered to other customer
token not found	not_found	404	Token ID not found
Given customer token not match with saved customer token	not_found	404	Customer token not match with saved customer id merchant
Customer not found on Merchants Customer List	not_found	404	Customer not found
Original transaction not found	not_found	404	Original payment not found
refund amount is greater than paid amount	account_error	400	Refund amount greater than paid amount
merchant not found	not_found	404	Merchant not found
failed after 1 hour(s)	0001	404	Payment failed after 1 hour, assumption : Customer didnt continue payment on ovo, executed by system scheduler
customer id already used	invalid_access	401	customer id already used
OVO account blocked temporary	account_error	400	OVO account blocked temporary
transaction not found in OVO	account_error	400	transaction not found in OVO
invoice_number already exist	invalid_access	401	invoice_number already exist
customer id not found	not_found	404	customer id not found
Given invoice number not match with saved invoice number	invalid_access	401	Given invoice number not match with saved invoice number
Given invoice number to be refunded does not belong to the merchant	invalid_access	401	Given invoice number to be refunded does not belong to the merchant
