# DOKU e-Wallet

### Integration steps <a href="#integration-steps" id="integration-steps"></a>

Here is the overview of how to integrate with DOKU e-Wallet:

1. Obtain `payment.url` by generating order
2. Display DOKU Wallet payment page to customer
3. Acknowledge payment result

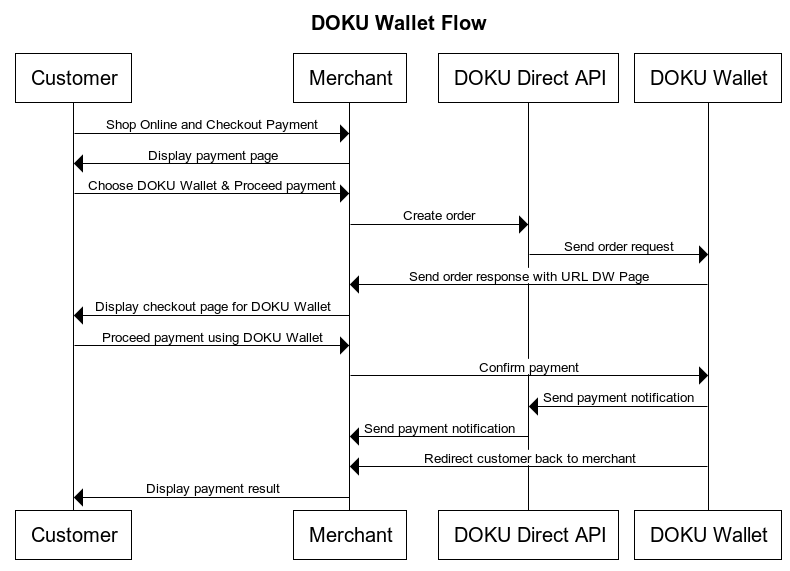

#### Direct API - DOKU e-Wallet Sequence Diagram

<figure><img src="https://3092822868-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqCxtvLoJNNxvp4U7kLHd%2Fuploads%2F0BDynjS1Jkrv97rSjoby%2FDOKU%20Wallet%20Flow.png?alt=media&#x26;token=69c4259e-e4a5-4a9c-9928-b546142c6c4d" alt=""><figcaption></figcaption></figure>

***

#### 1. Obtain `payment.url` by generating order <a href="#id-1-obtain-paymenturl-by-generating-order" id="id-1-obtain-paymenturl-by-generating-order"></a>

To generate order, you will need to hit this API through your Backend:

**API Request**

| Type                          | Value                                                       |
| ----------------------------- | ----------------------------------------------------------- |
| **HTTP Method**               | POST                                                        |
| **API endpoint (Sandbox)**    | `https://api-sandbox.doku.com/dokuwallet-emoney/v1/payment` |
| **API endpoint (Production)** | `https://api.doku.com/dokuwallet-emoney/v1/payment`         |

Here is the sample of request header to generate order:

```
Client-Id: MCH-0001-10791114622547
Request-Id: baec7d95-f30a-4b78-b711-6ebe0ccdf50b
Request-Timestamp: 2021-07-07T08:45:42Z
Signature: HMACSHA256=vl9DBTX5KhEiXmnpOD0TSm8PYQknuHPdyHSTSc3W6Ps=
```

#### Request Header Explanation

<table><thead><tr><th width="207">Parameter</th><th>Description</th></tr></thead><tbody><tr><td><strong>Client-Id</strong></td><td>Client ID retrieved from DOKU Back Office</td></tr><tr><td><strong>Request-Id</strong></td><td>Unique random string (max 128 characters) generated from merchant side to protect duplicate request</td></tr><tr><td><strong>Request-Timestamp</strong></td><td>Timestamp request on UTC time in ISO8601 UTC+0 format. It means to proceed transaction on UTC+7 (WIB), merchant need to subtract time with 7. Ex: to proceed transaction on September 22th 2020 at 08:51:00 WIB, the timestamp should be 2020-09-22T01:51:00Z</td></tr><tr><td><strong>Signature</strong></td><td>Security parameter that needs to be generated on merchant Backend and placed to the header request to ensure that the request is coming from valid merchant. Please refer to <a href="../../../../get-started-with-doku-api/signature-component/non-snap/signature-from-api-get-method">this section</a> to generate the signature</td></tr></tbody></table>

Here is the sample request body to generate order:

```json
{
    "order": {
        "invoice_number":"TEST-1234",
        "amount": 9000,
        "line_items": [
            {
                "name": "T-Shirt Red",
                "price": 3000,
                "quantity": 2
            },
            {
                "name": "Polo Navy",
                "price": 3000,
                "quantity": 1
            }
        ],
        "success_url": "https://your-success-url.domain/",
        "failed_url": "https://your-failed-url.domain/",
        "notify_url": "https://merchant.com/notify-url",
        "auto_redirect": false
    },
    "additional_info": {
        "override_notification_url": "https://another.example.com/payments/notifications"
    }
}
```

#### Request Body Explanation

<table><thead><tr><th width="165">Parameter</th><th width="100">Type</th><th width="135">Mandatory</th><th>Description</th></tr></thead><tbody><tr><td><code>order.invoice_number</code></td><td>string</td><td>Mandatory</td><td>Generated by merchant to identify the order and must unique per request<br>Allowed chars: <code>alphabetic, numeric, special chars</code><br>Max length: <code>64</code></td></tr><tr><td><code>order.amount</code></td><td>number</td><td>Mandatory</td><td>In IDR currency and without decimal<br>Allowed chars: <code>numeric</code><br>Max length: <code>12</code></td></tr><tr><td><code>order.line_items.name</code></td><td>string</td><td>Conditional</td><td>Optional if request doesnt pass line items. But if request passes, then it becomes Mandatory.<br>Allowed chars: <code>alphabetic, numeric, special chars</code><br>Max Length: <code>255</code></td></tr><tr><td><code>order.line_items.price</code></td><td>number</td><td>Conditional</td><td>Price of the product item. Total price and quantity must match with the <code>order.amount</code>. Optional if request doesnt pass line items. But if request passes, then it becomes Mandatory.<br>Allowed chars: <code>numeric</code><br>Max Length: <code>12</code></td></tr><tr><td><code>order.line_items.quantity</code></td><td>number</td><td>Conditional</td><td>Quantity of the product item&#x3C;. Optional if request doesnt pass line items. But if request passes, then it becomes Mandatory.<br>Allowed chars: <code>numeric</code><br>Max Length: <code>4</code></td></tr><tr><td><code>success_url</code></td><td>string</td><td>Optional</td><td>Merchant URL that will redirected to after the order success. If merchant set <code>order.auto_redirect</code> to <code>true</code>, then the default url is "<a href="http://www.doku.com&#x22;/">www.doku.com"</a>.<br>Allowed chars: <code>alphabetic, numeric, special chars</code></td></tr><tr><td><code>failed_url</code></td><td>string</td><td>Optional</td><td>Merchant URL that will redirected to after the order failed. If not set, then will redirect to <code>success_url</code><br>Allowed chars: <code>alphabetic, numeric, special chars</code></td></tr><tr><td><code>notify_url</code></td><td>string</td><td>Mandatory</td><td>Merchant URL that will be notify from DOKU. If its not define, status in merchant will not update.<br>Allowed chars: <code>alphabetic, numeric, special chars</code></td></tr><tr><td><code>auto_redirect</code></td><td>string</td><td>Mandatory</td><td>Redirection to defined <code>success_url</code> after payment process completed<br>Possible value: <code>true, false</code><br>Default value: <code>false</code></td></tr><tr><td><code>additional_info.override_notification_url</code></td><td>string</td><td>Optional</td><td>This parameter is intended to override the configured <code>Notification URL</code> with another URL.  Click <a href="../../../../get-started-with-doku-api/notification/override-notification-url">here</a> for more information.</td></tr></tbody></table>

**API Response**

After hitting the above API request, DOKU will give the response.

| Type            | Value   |
| --------------- | ------- |
| **HTTP Status** | 200     |
| **Result**      | SUCCESS |

```
Client-Id: MCH-0001-10791114622547
Request-Id: baec7d95-f30a-4b78-b711-6ebe0ccdf50b
Response-Timestamp: 2021-07-07T08:45:42Z
Signature: HMACSHA256=9UPUFzOqJc47aJzD9ESOTcWg6TMsg3mqSP+DnUO8ENE=
```

#### Response Header Explanation

<table><thead><tr><th width="207">Parameter</th><th>Description</th></tr></thead><tbody><tr><td><strong>Client-Id</strong></td><td>Same as the request</td></tr><tr><td><strong>Request-Id</strong></td><td>Same as the request</td></tr><tr><td><strong>Request-Timestamp</strong></td><td>Timestamp Response on UTC with format ISO8601 UTC+0 from DOKU</td></tr><tr><td><strong>Signature</strong></td><td>Signature generated by DOKU based on the response body</td></tr></tbody></table>

Here is the sample of response body:

```json
{
    "order": {
        "invoice_number": "JT-JOKUL-PP_20220125093936",
        "line_items": [
            {
                "name": "T-Shirt Red",
                "price": 3000,
                "quantity": 2
            },
            {
                "name": "Polo Navy",
                "price": 3000,
                "quantity": 1
            }
        ]
    },
    "doku_wallet_payment_page": {
        "url": "https://staging.doku.com/wallauth/jokultransaction?sessionId=ff54640d-8a3d-4efb-a867-47785971c7c9"
    },
    "additional_info": {
        "override_notification_url": "https://another.example.com/payments/notifications"
    }
}
```

#### Response Body Explanation

<table><thead><tr><th width="188">Parameter</th><th width="90">Type</th><th width="118">Mandatory</th><th>Description</th></tr></thead><tbody><tr><td><code>order.invoice_number</code></td><td>string</td><td>Mandatory</td><td>Same as the request</td></tr><tr><td><code>order.line_items.name`</code></td><td>number</td><td>Mandatory</td><td>Same as the request</td></tr><tr><td><code>order.line_items.price</code></td><td>number</td><td>Mandatory</td><td>Same as the request</td></tr><tr><td><code>order.line_items.quantity</code></td><td>number</td><td>Mandatory</td><td>Same as the request</td></tr><tr><td><code>doku_wallet_payment_page.url</code></td><td>string</td><td>Mandatory</td><td>DOKU Wallet Payment Page URL generated by DOKU that merchant displays to the customer</td></tr><tr><td><code>additional_info.override_notification_url</code></td><td>string</td><td>Optional</td><td>Same as the request</td></tr></tbody></table>

***

#### 2. Display DOKU Wallet payment page to customer <a href="#id-2-display-doku-wallet-payment-page-to-customer" id="id-2-display-doku-wallet-payment-page-to-customer"></a>

Once you have the `payment.url`, you can now display the payment page by redirecting your customer to the DOKU Wallet payment page.

After the customer completed the payment, they will be redirected to the defined `success_url` that you set on the API request.

***

#### 3. Acknowledge payment result <a href="#id-3-acknowledge-payment-result" id="id-3-acknowledge-payment-result"></a>

After the payment is being made by your customer, DOKU will send **HTTP Notification** to your defined `Notification URL`. Learn how to handle the notification from DOKU:

* [Handling DOKU HTTP Notification](https://developers.doku.com/get-started-with-doku-api/notification/http-notification-sample-non-snap)

***
